We stock inverter driven end carriages or 2 speed end trucks for top or side mounted girder cranes.
|

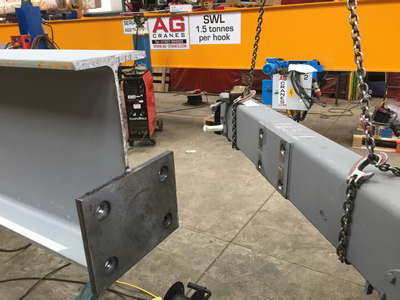

Our crane end carriages wheel base is 1/7th of the crane span. We stock the most common sizes and can usually offer delivery within a week. On this page we feature the side mounted carriages, that is when your beam sits on the side of the end carriage, in shear. Around 20 sets always in stock.

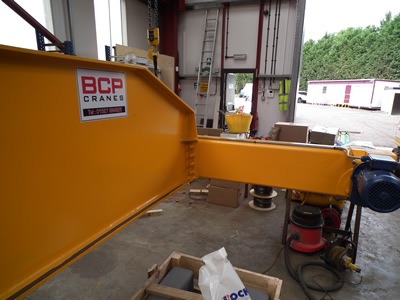

AG Cranes are the UK stockist of The Balkancar (BCP) crane end carriages. As standard they are inverter driven traveling at up to 40 meters a minute, they also come with a 12 month warranty. Both single (SG) and double (DG) girder carriages are available. Side mounting connection plates and long travel drives are included as standard.
single girder = SG double girder = DG model number |
crane
SWL in tonnes |
end
carriage wheel base |
connection
plates |
LT
rail size |
max
speeds/ mts per minute |
crane
span 7:1 |
REF
BCP1500 |
5
tonnes |
1500mm |
side
mount |
50mm |
1-40
mt variable speed |
Up to 12 meter cranes. 6 pairs in stock. Next day delivery!! |
REF
BCP2200 |
5
tonnes |
2200mm |
side
mount |
50mm |
1-40
mt variable speed |
Up
to 15.4 mt Next day delivery. 7 pairs in stock. Next day delivery!! |
REF
BCP2350 |
6.3
tonnes |
2350mm |
side
mount |
50mm |
1-40
mt variable speed |
Up to 16.45 meters wide. 2 pairs in stock |
| REF
BCP1800 |
10
tonnes |
1800mm |
side
mount |
50mm |
1-40
mt variable speed |
12.6 meter span cranes. IN STOCK |
REF
BCP2650 |
10
tonnes |
2650mm |
side
mount |
50mm |
1-40
mt variable speed |
18.5 meter span cranes. IN STOCK |
AG CRANES can supply crane kits comprising;
An electric hoist, control panel, beam and festoon system if required. Our team of fully trained and experienced crane engineers can install, test and commission the crane for you. Email us your inquiry
