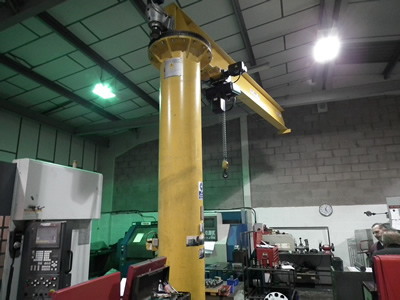

Pelloby Powered slew Jib crane underbraced, slightly used, 360 degrees slewing. REF AB6. SOLD.
 |
 |
|
|
 |
Under braced 2 tonne safe working load jib crane. It is currently installed and sited in Alcester near Stratford upon Avon.
SOLD
Overall height 4400mm
Floor to underside of the arm 4000mm
Monorail hoists hook at the highest point 3431mm
Arm length from central pivot 4250mm.
Arm weight 580kgs
Post weight 1397kgs

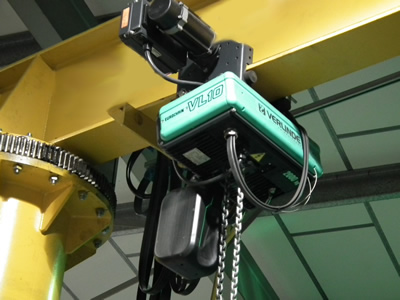

Chain monorail hoist speeds: 4/1 mts per minute.
Chain monorail hoist traveling speeds: 20/5 mts per minute variable.
Slewing speed: 0.53 revolutions per minute.
Pendant control on the hoist, or can be supplied with an in dependant pendant (divorced).
