USED KCI KONE CRANES. REF AB17 12.5 tonne crane, true vertical lift.
|
|
|
|
AB17, crane and steelwork.
|

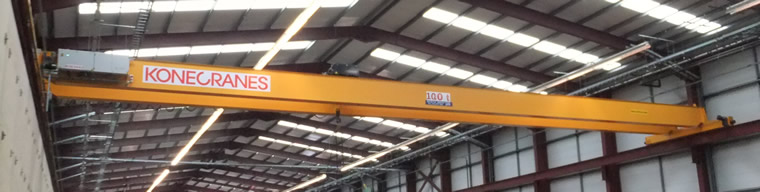

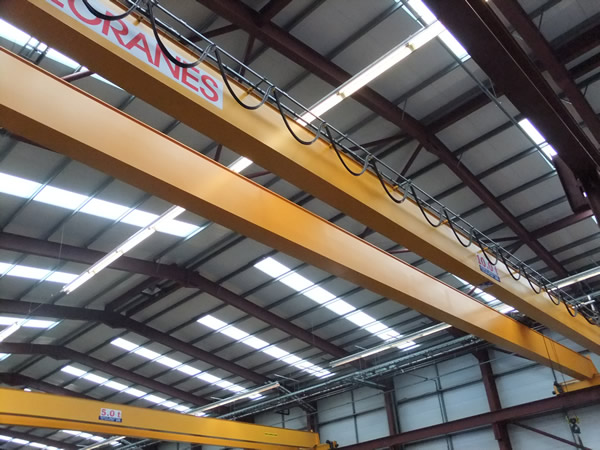

We have for sale this slightly used Konecrane. REF AB17. Span 7.75 meters. Maximum rope on the drum 9 meters. Lifting capacity 2 x 12.5 tonnes. Year 2004, as new condition. Speeds; 4/0.67 lifting plus inverter in other motions. Floor to rail 5.5, max hook height 5.41mm. Duty FEM M4 1Am. Konecranes Crane weight 3490mm. Support Steelwork; Type free standing. Down shop rail is in 5 meter pitches, total down shop 10 meters per side. 3 legs per side. Column base sizes 700 x 400mm. Includes to longitudinal surge bracing's. Max turning moment to the columns 52 kNm. Radio remote option. |
|

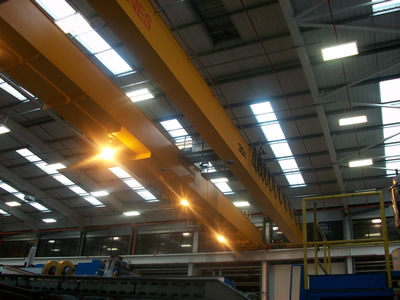

25 tonne used Kone Crane below. NOW SOLD. For more details on the 25t crane. |
|
|
REF AB22 above. |
25 tonne KCI Crane, above. |
|

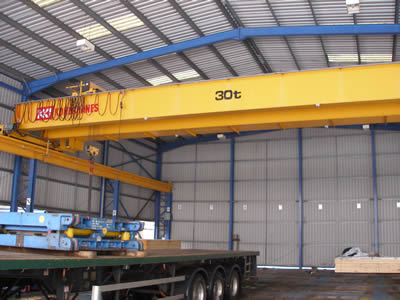

ABOVE: 30 tonne SWL used Kone crane, AG152-1 SOLD |
ABOVE: Rail and support columns to go with it SOLD |
Used
Kone electric crane specifications. |
|
